ASTA 60

線性地埋燈

ASTA 60

線性地埋燈

ASTA 60

線性地埋燈

ASTA 60

線性地埋燈

ASTA 60

線性地埋燈

ASTA 60

線性地埋燈

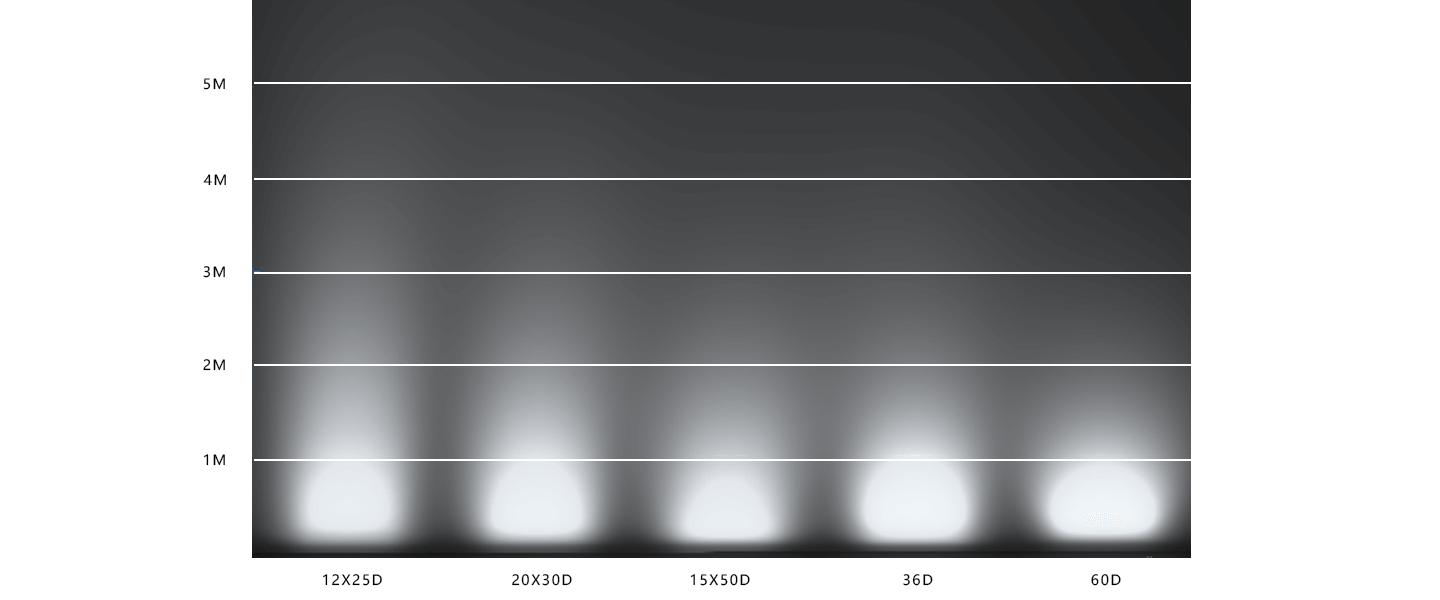

光效圖

產品規格:
燈具類型:線性地埋燈
光束角:12x25D 20x30D 15x50D 36D 60D
功率:3W 24W 36W 48W
尺寸:1000*60*81mm
預埋件尺寸:1002*67*96mm
重量:8.9kg
散熱器材質:鋁
表面工藝:烤漆
色溫:2700K 3000K 4000K
線條圖:
產品特征:


可選配件:
反射器顏色:
外框顏色:

型號選擇:

功率
  • 功率
  • 3W
  • 24W
  • 36W
  • 48W
光束角
  • 光束角
  • 面發光
  • 12X25°
  • 15X50°
  • 20X30°
  • 36°
  • 60°
顯示指數
  • 顯示指數
  • >80
色溫
  • 色溫
  • 2700K
  • 3000K
  • 4000K
Control
  • Control
  • ON/OFF/DALI/DMX512
調光方式
  • 調光方式
  • 1-Non Dim
  • 4-DALI調光
  • 5-DMX512
邊框顏色
  • 邊框顏色
  • A3-不銹鋼本色
反射器顏色
  • 反射器顏色
  • 無
防護等級
  • 防護等級
  • 67-IP67
配件
  • 配件
  • B-海鷗格柵
  • C-月牙格柵

  • 型號

  • 整燈光通量

  • 功率

  • 光束角

  • 顯示指數

  • 色溫

  • Control

  • 規格書

  • DWG

  • IES

  • 安裝手冊

  • 收藏

型號
BB00209-03008027
BB00209-03008030
BB00209-03008040
BB00209-2415258027
BB00209-2420508027
BB00209-2415508027
BB00209-24368027
BB00209-24608027
BB00209-2415258030
BB00209-2420508030
BB00209-2415508030
BB00209-24368030
BB00209-24608030
BB00209-2415258040
BB00209-2420508040
BB00209-2415508040
BB00209-24368040
BB00209-24608040
BB00209-3615258027
BB00209-3620508027
BB00209-3615508027
BB00209-36368027
BB00209-36608027
BB00209-3615258030
BB00209-3620508030
BB00209-3615508030
BB00209-36368030
BB00209-36608030
BB00209-3615258040
BB00209-3620508040
BB00209-3615508040
BB00209-36368040
BB00209-36608040
BB00209-4815258027
BB00209-4820508027
BB00209-4815508027
BB00209-48368027
BB00209-48608027
BB00209-4815258030
BB00209-4820508030
BB00209-4815508030
BB00209-48368030
BB00209-48608030
BB00209-4815258040
BB00209-4820508040
BB00209-4815508040
BB00209-48368040
BB00209-48608040
整燈光通量
85LM
88LM
95LM
2216LM
2488LM
2256LM
2225LM
2236LM
2285LM
2565LM
2326LM
2294LM
2305LM
2731LM
2839LM
2533LM
2564LM
2641LM
3340LM
3339LM
3108LM
3096LM
2860LM
3444LM
3442LM
3204LM
3192LM
2948LM
3712LM
3858LM
3473LM
3467LM
3617LM
4109LM
4198LM
3832LM
3840LM
3758LM
4237LM
4328LM
3951LM
3959LM
3874LM
4440LM
4608LM
4031LM
4142LM
4224LM
功率
3W
3W
3W
24W
24W
24W
24W
24W
24W
24W
24W
24W
24W
24W
24W
24W
24W
24W
36W
36W
36W
36W
36W
36W
36W
36W
36W
36W
36W
36W
36W
36W
36W
48W
48W
48W
48W
48W
48W
48W
48W
48W
48W
48W
48W
48W
48W
48W
光束角
面發光
面發光
面發光
12X25°
20X30°
15X50°
36°
60°
12X25°
20X30°
15X50°
36°
60°
12X25°
20X30°
15X50°
36°
60°
12X25°
20X30°
15X50°
36°
60°
12X25°
20X30°
15X50°
36°
60°
12X25°
20X30°
15X50°
36°
60°
12X25°
20X30°
15X50°
36°
60°
12X25°
20X30°
15X50°
36°
60°
12X25°
20X30°
15X50°
36°
60°
顯示指數
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
色溫
2700K
3000K
4000K
2700K
2700K
2700K
2700K
2700K
3000K
3000K
3000K
3000K
3000K
4000K
4000K
4000K
4000K
4000K
2700K
2700K
2700K
2700K
2700K
3000K
3000K
3000K
3000K
3000K
4000K
4000K
4000K
4000K
4000K
2700K
2700K
2700K
2700K
2700K
3000K
3000K
3000K
3000K
3000K
4000K
4000K
4000K
4000K
4000K
Control
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
ON/OFF/DALI/DMX512
規格書
DWG
IES
安裝手冊
收藏
