ASTA 148
窄邊地埋燈
ASTA 148
窄邊地埋燈
ASTA 148
窄邊地埋燈

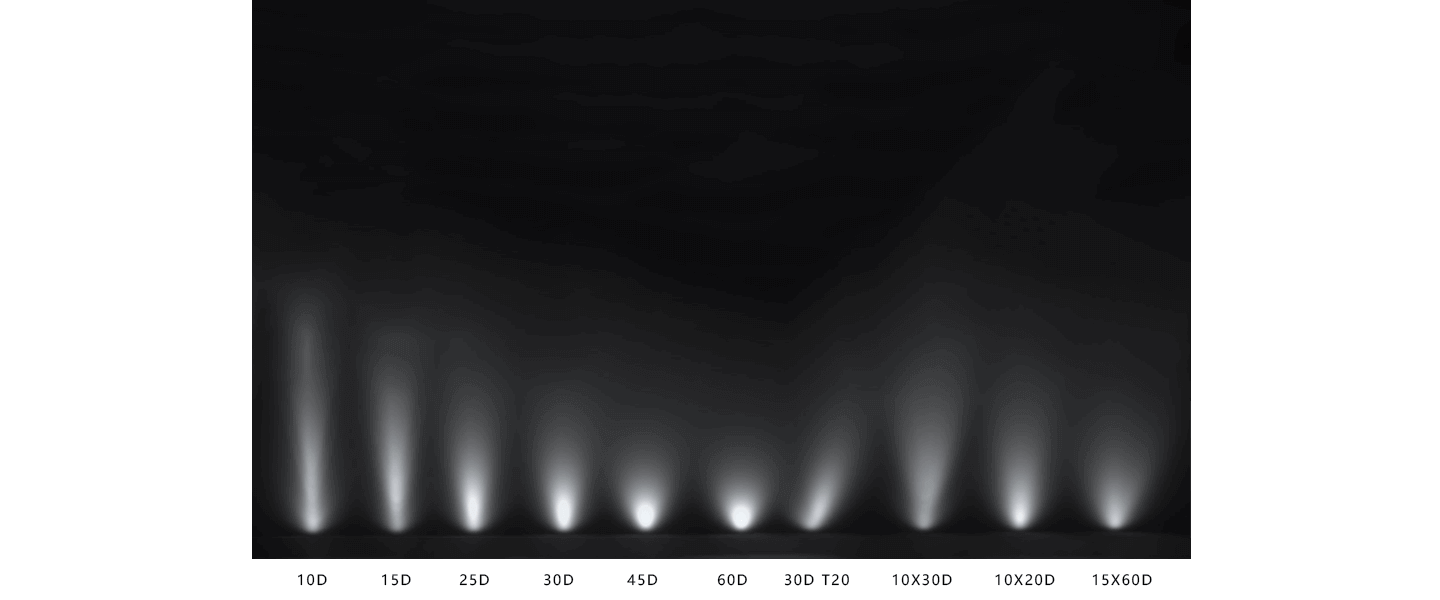

光效圖
- 產品規格:
- 燈具類型:窄邊地埋燈
- 光束角:10D 15D 25D 30D 45D 60D 30D T20 10X30D 10X20D 15X60D
- 功率:0.7W 14W
- 燈具尺寸:φ148*64mm
- 預埋件尺寸:φ148*62mm/φ148*150mm
- 重量:1.51kg 1.71kg
- 散熱器材質:鋁
- 色溫:2700K 3000K 4000K
- 表面工藝:烤漆
- 線條圖:
- 產品特征:
- 可選配件:
- 反射器顏色:
- 外框顏色:
型號選擇:功率- 功率
- 0.7W
- 14W
光束角- 光束角
- 面發光
- 10°
- 15°
- 15X60°
- 15X25°
- 20X30°
- 25°
- 30°
- 30° T20
- 45°
- 60°
顯示指數- 顯示指數
- >80
色溫- 色溫
- 2700K
- 3000K
- 4000K
Control- Control
- ON/OFF/DALI/DMX512
調光方式- 調光方式
- 1-Non Dim
- 4-DALI調光
- 5-DMX512
邊框顏色- 邊框顏色
- 不銹鋼本色
反射器顏色- 反射器顏色
- 無
防護等級- 防護等級
- 67-IP67
配件- 配件
- 海鷗格柵
- 月牙格柵
功率
- 功率
- 0.7W
- 14W
光束角
- 光束角
- 面發光
- 10°
- 15°
- 15X60°
- 15X25°
- 20X30°
- 25°
- 30°
- 30° T20
- 45°
- 60°
顯示指數
- 顯示指數
- >80
色溫
- 色溫
- 2700K
- 3000K
- 4000K
Control
- Control
- ON/OFF/DALI/DMX512
調光方式
- 調光方式
- 1-Non Dim
- 4-DALI調光
- 5-DMX512
邊框顏色
- 邊框顏色
- 不銹鋼本色
反射器顏色
- 反射器顏色
- 無
防護等級
- 防護等級
- 67-IP67
配件
- 配件
- 海鷗格柵
- 月牙格柵
型號
整燈光通量
功率
光束角
顯示指數
色溫
Control
規格書
DWG
IES
安裝手冊
收藏
- 型號
- BB00206-00000827
- BB00206-00000830
- BB00206-00000840
- BB00206-00010827
- BB00206-00015827
- BB00206-00025827
- BB00206-00030827
- BB00206-00045827
- BB00206-00060827
- BB00206-P0030827
- BB00206-01030827
- BB00206-02030827
- BB00206-02050827
- BB00206-00010830
- BB00206-00015830
- BB00206-00025830
- BB00206-00030830
- BB00206-00045830
- BB00206-00060830
- BB00206-P0030830
- BB00206-01030830
- BB00206-02030830
- BB00206-02050830
- BB00206-00010840
- BB00206-00015840
- BB00206-00025840
- BB00206-00030840
- BB00206-00045840
- BB00206-00060840
- BB00206-P0030840
- BB00206-01030840
- BB00206-02030840
- BB00206-02050840
- 整燈光通量
- 26LM
- 27LM
- 33LM
- 588LM
- 816LM
- 756LM
- 754LM
- 751LM
- 580LM
- 663LM
- 721LM
- 733LM
- 667LM
- 619LM
- 859LM
- 796LM
- 794LM
- 791LM
- 611LM
- 698LM
- 759LM
- 772LM
- 703LM
- 619LM
- 859LM
- 796LM
- 794LM
- 791LM
- 611LM
- 698LM
- 759LM
- 772LM
- 703LM
- 功率
- 0.7W
- 0.7W
- 0.7W
- 14W
- 14W
- 14W
- 14W
- 14W
- 14W
- 14W
- 14W
- 14W
- 14W
- 14W
- 14W
- 14W
- 14W
- 14W
- 14W
- 14W
- 14W
- 14W
- 14W
- 14W
- 14W
- 14W
- 14W
- 14W
- 14W
- 14W
- 14W
- 14W
- 14W
- 光束角
- 面發光
- 面發光
- 面發光
- 10°
- 15°
- 25°
- 30°
- 45°
- 60°
- 30° T20
- 15X25°
- 20X30°
- 15X60°
- 10°
- 15°
- 25°
- 30°
- 45°
- 60°
- 30° T20
- 15X25°
- 20X30°
- 15X60°
- 10°
- 15°
- 25°
- 30°
- 45°
- 60°
- 30° T20
- 15X25°
- 20X30°
- 15X60°
- 顯示指數
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- >80
- 色溫
- 2700K
- 3000K
- 4000K
- 2700K
- 2700K
- 2700K
- 2700K
- 2700K
- 2700K
- 2700K
- 2700K
- 2700K
- 2700K
- 3000K
- 3000K
- 3000K
- 3000K
- 3000K
- 3000K
- 3000K
- 3000K
- 3000K
- 3000K
- 4000K
- 4000K
- 4000K
- 4000K
- 4000K
- 4000K
- 4000K
- 4000K
- 4000K
- 4000K
- Control
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
- ON/OFF/DALI/DMX512
